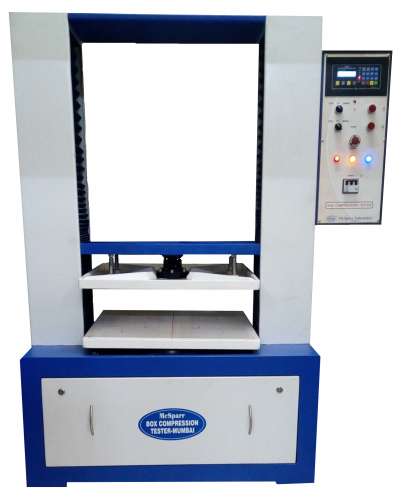

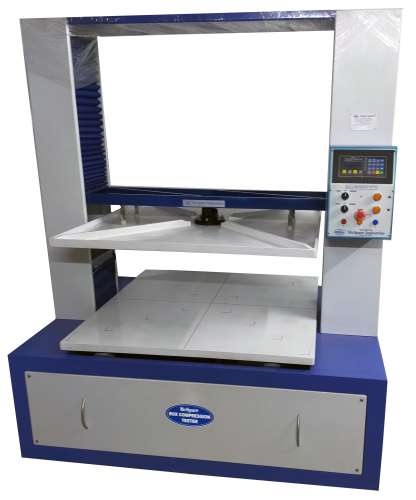

Box compression strength tester is used to measure the containers resistance to the external compression loads during transit and storage period, this is suitable to test stacking strength of corrugated boxes and other type of containers
| IS : | 7028 (Part VI) 1973 7028 (Part IX) 1975 |
| FCBM : | 14:96 |
| ASTM : | D 4577 - 94 / D 642 - 98 |
| FEFCO : | TM 50 1997 |
| TAPPI : | T 804 om-02 |
| Dimensions in mm (LxWxH) Including Control Panel | 1500x1200x2000 |
| Weight In Kgs | 750 |
| Power Requirement | 440 Volts |
| Capacity (Standard Model) | 1000 |
| Max. Box Size (Standard Model) | 1000 x 1000 x 1000mm |
| Motor Power | 2 HP 3 Phase 1440 RPM Made By Hindustan Motor |
| Test Speed by Auto mode | 10 to 12 mm per minute |
| Full Speed by manual mode | 82 To 84 mm Per Minute |
| PLATEN SIZE UP & DOWN | 1050 X 1050 mm |
| Dimensions in mm (LxWxH) Including Control Panel | 650X650X1000 |
| Weight in Kgs | 600 |
| Power Requirement | 440 Volts |
| Capacity (Standard Model) | 1000 |
| Max. Box Size (Standard Model) | 600 x 600 X 800 mm |
| Motor Power | 1.5 HP 3 Phase 1440 RPM Made by Hindustan Motor |
| Test Speed by Auto mode | 10 to 12 mm per minute |
| Full Speed by manual mode | 82 To 84 mm Per Minute |
| PLATEN SIZE UP & DOWN | 600 X 600 mm |
| GEAR BOX Ratio | 1:60 |
