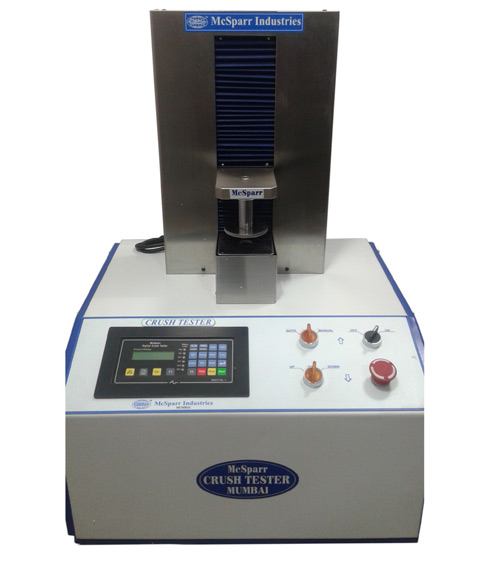

Crush Tester

This machine is suitable for testing ring crush, edge crush, flat crush, pin adhesion of corrugated board, corrugating medium test of fluted paper and compression strength of small cartons.

Suitable value For Testing as Per followed.

Flat Crush Test

TAPPI :	T 808 om-92
FEFCO :	TM 6 1986
IS :	4006 (Part II)

EDGE CRUSH TEST

TAPPI :	T 811 om-88
FEFCO :	TM 8 1997
IS :	7063 (Part II) 1976

RING CRUSH TEST

TAPPI :	T 818 om-87
IS :	12192 (2002)
FCBM :	19:98

PIN ADHESION TEST

TAPPI :	T 821 om-96
FEFCO :	TM 11 1985
IS :	4006 (Part I) 1966

CONCORA MEDIUM TEST

TAPPI :	T 809 om-99
IS :	7263 (1994)

Available Models

CRUSH TESTER LCD MODEL
TECHNICAL SPECIFICATIONS

Load Cell Capacity	300 Kgf
Load Cell Sensitivity	±0.2% Full Scale
Motor Power	½ HP 1440 RPM
Digital LCD Display	Micro Control 0 to 300
Platen Size	100 mm dia
Admit Between Platen	20 – 75 mm
Loading Speed	10 ± 2.0 mm Per Minute
Power Requirement	220 Volts Single Phase
Dimensions in mm (LxWxH)	525x575x762
Weight in Kg	140

Download Catalogue

CRUSH TESTER TOUCH SCREEN MODEL
TECHNICAL SPECIFICATIONS

Load Cell Capacity	300 Kgf
Load Cell Sensitivity	±0.2% Full Scale
Motor Power	½ HP 1440 RPM
Digital LCD Display	Micro Control 0 to 300
Platen Size	100 mm dia
Admit Between Platen	20 – 75 mm
Loading Speed	10 ± 2.0 mm Per Minute
Power Requirement	220 Volts Single Phase
Dimensions in mm (LxWxH)	525x575x762
Weight in Kg	140
